The full servo punching machine is a special equipment used for punching the slot holes of the rotor of the motor and the silicon steel sheet of the stator. The slider of this machine is driven by servo motor, and the indexing spindle rotation of this machine is driven by servo motor and high-precision gear reduction. Since the punching press and the indexing system are flexibly linked, the machine can punch both equal and unequal angle distribution slots. It can punch the motor iron chip with special requirements at the first groove position (such as the motor core with spiral groove) and the function of multiple punches. The stator with the diameter of the motor punching sheet below F1500mm and the rotor silicon steel sheet with the diameter below F1300mm are punched by this machine.
Optional features:
1. Indexing servo feed function (commonly known as three servo): more convenient operation.
2. Slider lifting function: the balance lever mechanism and balance block device are used to reduce the vibration of the bed and ensure the punching accuracy. The slider stroke is 20mm, and the maximum stroke is 600 times/min; The lifting stroke of the slider is 30mm, and the total stroke of the slider is 50mm, which is convenient for automatic pick-and-place punching.
3. Tangential chute function: add the chute punching mechanism, which can punch the punching piece and stack it into the core of the tangential chute.
4. Lifting workbench function: the height of the workbench can be adjusted manually, and the lifting height is 8mm.
5. Discharging form after scrap. It is convenient for scrap conveyor belt transfer.
Main specifications and technical parameters
serial number | name call | rules case ginseng number | unit |
1.1 | Nominal power | 200 | kn |
1.2 | Slide travel | 20 | mm |
1.3 | Slider lift stroke(Matching) | 30 | mm |
1.3 | The number of slider strokes | 180~700 | spm |
1.4 | Maximum enclosed height | 240 | mm |
1.5 | Closed height adjustment | 30 | mm |
1.6 | The distance from the center of the slider to the bed(Deep throat) | 400 | mm |
1.7 | The distance from the center of the index axis to the center of the slide | 100~650 | mm |
1.8 | Range of punch counts | 1~999 | |
1.9 | Punch diameter range | F200 ~F1500 | mm |
1.10 | Punching thickness | 2.0 | mm |
1.14 | Compressed air working pressure | 0.45 | MPa |
1.15 | The height of the fuselage work surface from the ground | 880 | mm |
1.16 | Overall dimensions of the whole machine(Before and after×around×high) | 2856×934×2189 | mm |
1.17 | The weight of the whole machine | ≈5000 | medical history |
20The main features of the ton:

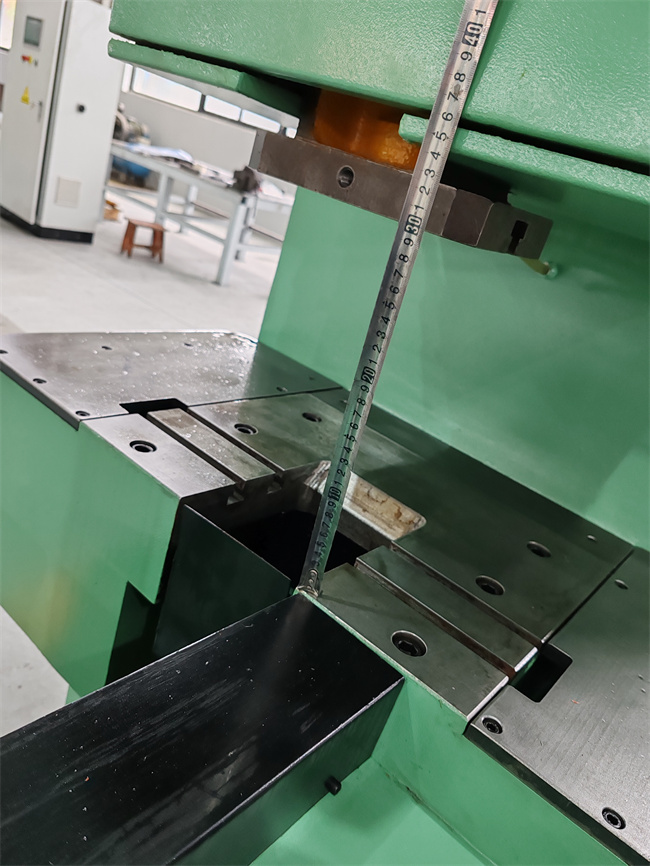

1. The closed height is 240 mm, the closed height is large, and it is suitable for the installation of molds with multiple punches in one mold according to the requirements of large domestic mold factories.

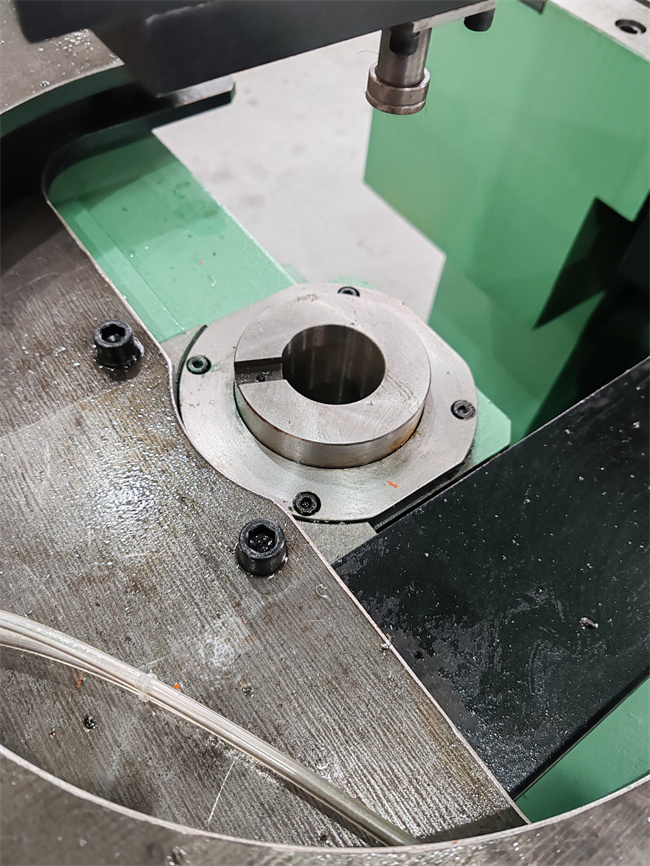

2. There is a keyway on the end face of the indexing spindle, which is convenient to replace the starting angle when the centering shaft is replaced.
